Creating shapes.txt with Google Maps API

Transit agencies can share route information via the standardized General Transit Feed Spec (GTFS), a series of CSV files. Parts of this specification would be laborious to create without the help of automation. shapes.txt is a file that draws out route paths.

My goal was to generate this file using the Google Maps API and Python. The result is not always perfectly representative of the path a bus actually takes, but I found that it is close enough for my purposes.

Google Maps Polylines​

The essence of shapes.txt are polylines, or lists of coordinates that draw out a route's path.

These polylines can be automatically generated using the Google Maps API. The Google Maps Directions API will return an encoded polyline like }tf{FjlncSTmBb@mAh@o@nAeB@iAn@iVt@aGHwB that we can use Python to decode into a list of coordinates.

You can experiment with creating polylines with the Google Maps Polyline Utility. Below shows a small polyline I created with the utility to demonstrate what a shape is:

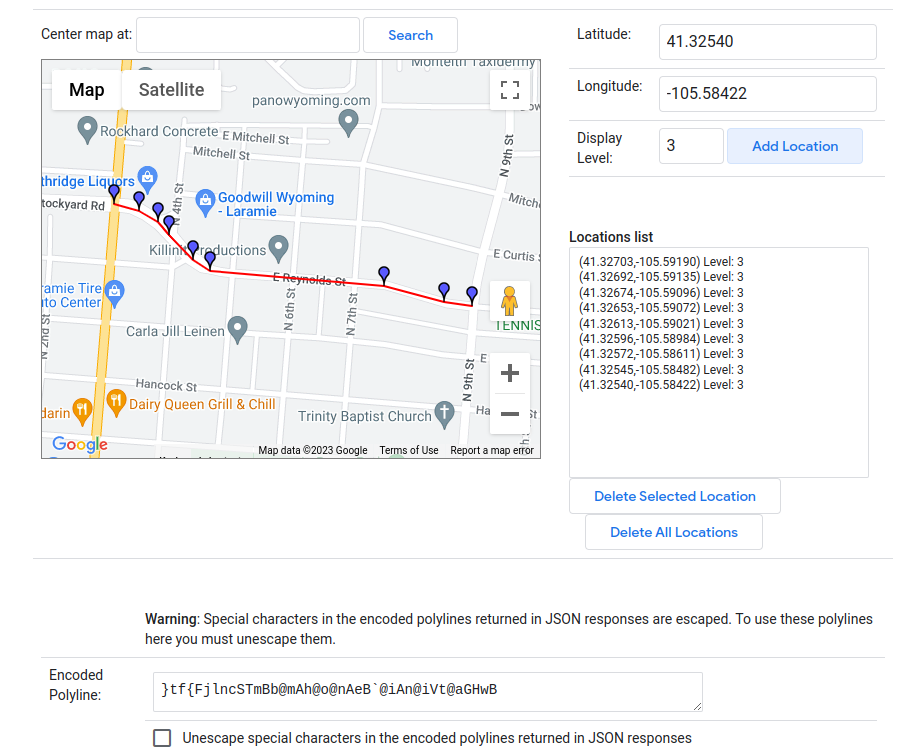

Google polyline utility shows a map with a few waypoints, a list of their coordinates, and an encoded polyline

I wanted to generate polylines using a list of stops, like "Union --> Downtown --> Walmart". I joined these stops with a list of stop coordinates, ran the list through the Directions API, and finally created the shapes.txt file.

Prepping the waypoint list​

In Google Maps Directions API, you can ask for directions from an origin to a destination with a list of waypoints. At the top of my raw route timetables (CSV), I had a series of stop IDs like:

SELUN_3AAEL_1EL_2EL_3ANMLUN_2SEL

My Stops table housed a list of stops with stop IDs and latitude-longitude locations. I looped through the stop IDs and crossed this information with the stops table, creating a list of waypoints. I used the Python Client for Google Maps Services library, and chose to use tuples for the waypoints in accordance with the Directions Docs.

all_waypoints = [
    (41.3021632, -105.540547),
    (41.303224, -105.546676),
    (41.3104826, -105.5570798),
    (41.311719, -105.557704),
    (41.311098, -105.560157),
    (41.310502, -105.564956),
    (41.310026, -105.574351),
    (41.312475, -105.578491),
    (41.31063, -105.583832) ...
]

The final thing to note is that the Directions API expects an origin, a destination, and the in-between waypoints. I sliced the all_waypoints list into these three parameters and assigned them to their route.

route.first_stop = route.all_waypoints[0]
route.final_stop = route.all_waypoints[-1]
route.waypoints = route.all_waypoints[1:-1]

Creating the latitude-longitude polyline​

I used the Python Client for Google Maps Services library to easily make calls to the Directions API. You will need to install the client library and configure an API key through Google. You will have to give Google your payment information, and information on pricing can be found at Google Maps Platform Pricing. Google currently refunds $200 each month, so I have never had to pay for using the API.

Please research best practices for storing and restricting your API key to avoid excess or unauthorized resource consumption.

Here are a few helpful resources:

Creating the polyline has three main steps:

  1. Call the Directions API. I stored the Google Maps API Key as an environmental variable. Storing the API key in your source code is unwise unless you have adequate restrictions on the use of the key.

    import googlemaps

    # Instantiate Google Maps Client
    gmaps = googlemaps.Client(key=os.getenv("GOOGLE_MAPS_API_KEY"))

    # Call Directions API.
    # origin and destination are lat-lng tuple
    # waypoints are lat-lng tuple list
    directions_response = gmaps.directions(
        origin=origin, destination=destination, mode="driving", waypoints=waypoints
    )

  2. Decode encoded polyline. I used this Polyline Decoder library. Note that the client returns an array of directions. This is because the API can be configured to return multiple direction options.

    import polyline

    directions = directions_response[0]
    directions_polyline = directions["overview_polyline"]["points"]
    shape = polyline.decode(directions_polyline)

  3. Create a latitude-longitude polyline. I mapped each point tuple to a dictionary. This helped document the tuple's meaning in later steps.

    latLngPolyline = []

    for point in shape:
        latLng = {"lat": point[0], "lng": point[1]}
        latLngPolyline.append(latLng)

    return latLngPolyline

Create shapes.txt​

The final step was to take the polyline data and create shapes.txt. In the General Transit Feed Spec, shapes.txt defined the path taken by a route. This helps Google Maps and other applications display a line for users to get an idea of where a route runs. See the Google GTFS Reference on shapes.txt for more information.

The below function creates a route's shape dataframe. I needed to create a shape dataframe for each route, and then combine the dataframes into one.

def createShapeDf(latLngPolyline, route_id):
    shape_df = pd.DataFrame(
        columns=["shape_id", "shape_pt_lat", "shape_pt_lon", "shape_pt_sequence"]
    )
    shape_id = route_id

    for index, point in enumerate(latLngPolyline):
        shape_pt = {
            "shape_id": shape_id,
            "shape_pt_lat": point["lat"],
            "shape_pt_lon": point["lng"],
            "shape_pt_sequence": index,
        }
        shape_df.loc[len(shape_df.index)] = shape_pt

    return shape_df

Note on dataframes: Pandas dataframes can be converted into a CSV like shown below.

df.to_csv(path, index=False)

Final thoughts​

Overall, this method for generating shapes.txt works well. As expected, the path returned by the Directions API doesn't perfectly match the route. Buses take considerations to reduce dangerous turns and tight roads, and the Directions API doesn't necessarily make these same considerations.

A future script would allow for additional waypoints to be added to influence the Directions API. I will wait until this need is demonstrated.

Thanks for taking the time to read this article, and I hope it was helpful!
